Solid-wire MIG and flux-cored arc welding use different electrodes, shielding methods and maintenance routines, so a higher deposition rate does not automatically produce more accepted parts per shift. By comparing the process mechanics, production losses, setup requirements and inspection results, you can select the right method for each joint instead of choosing from machine ratings alone.
Key takeaways
- Use solid wire with shielding gas for clean, controlled MIG welds.
- Choose flux-cored wire when outdoor work or higher penetration matters.
- Match polarity, drive rolls, liner and parameters to the selected wire.
- Approve production settings only after a joint-specific trial and inspection.
MIG and flux-cored welding use different shielding systems
The actual process difference is the shielding source. MIG welding uses a continuous solid wire electrode, while a flux core welder feeds tubular wire packed with flux.
A MIG welding machine normally supplies external shielding gas, such as argon-carbon dioxide, around the arc; flux-cored welding can generate shielding from the flux itself or use both flux and external gas.
| Process | Wire and shielding | Operating result |
|---|---|---|
| MIG (GMAW) | Solid wire plus external gas | Clean weld surface with no slag, but airflow can cause porosity |
| Gas-shielded flux-cored (FCAW-G) | Tubular flux wire plus external gas | Flux supports the arc and forms slag; gas still needs wind protection |
| Self-shielded flux-cored (FCAW-S) | Tubular flux wire; no gas cylinder | Flux creates shielding, making it suitable for draft-prone work; slag and fume increase |
These processes are not interchangeable machine modes. Changing from solid wire to flux-cored wire can require a different drive-roll and liner setup, contact tip, polarity, voltage range and wire extension. Use the wire manufacturer’s data sheet and the qualified welding procedure specification to set them; do not copy the MIG setting.
Flux in the tubular wire produces a protective gas and a slag cover as it decomposes. That explains the visible smoke, slag removal and different arc behaviour. A gas-shielded flux-cored setup still needs an enclosure or windbreak, just like MIG, because the external gas envelope remains vulnerable to airflow.
Match the wire and shielding method to the material and worksite
For clean, enclosed shop work on carbon steel, choose solid MIG wire when low slag, easy starts and minimal cleanup matter. A MIG welder is also a strong choice for thin carbon steel and stainless steel, provided you select the correct stainless wire and argon-rich shielding gas.
Gas-shielded flux-cored wire suits thicker carbon-steel joints where higher deposition and penetration outweigh slag removal.
| Option | Best material and worksite | Practical trade-off |
|---|---|---|
| Solid MIG wire | Carbon steel or stainless steel indoors; protected from drafts | Clean welds and no slag, but external gas shielding fails when wind disturbs the gas envelope |
| Gas-shielded flux-cored wire | Medium-to-thick carbon steel indoors or behind a windbreak; stainless steel only with a compatible classified wire and gas | Higher deposition and strong penetration, but produces slag, more fume and requires gas, correct polarity and qualified procedure |
| Self-shielded flux-cored wire | Carbon steel outdoors, on structural work or in draft-prone areas | Flux supplies shielding without a cylinder, but expect more fume, slag, spatter and electrode cost; stainless applications require a purpose-made wire |
Do not take a gas cylinder outside without controlling airflow: both MIG welding and gas-shielded FCAW need an enclosure or windbreak. A flux core welder running self-shielded wire avoids that gas envelope, but it is not automatically cheaper; compare wire, cleanup, extraction and accepted-weld costs.
Check the wire classification, manufacturer’s data sheet and WPS before changing polarity or material.
Set polarity, feed hardware and arc parameters for the selected process
Switching from a MIG welding machine to a flux core welder requires more than changing the wire spool. Set polarity, drive-roll geometry, roll pressure, shielding method, contact-tip-to-work distance, voltage and wire-feed speed from the wire manufacturer’s data sheet and the qualified WPS.
| Process | Polarity and shielding | Feed hardware | Arc setup |
|---|---|---|---|
| Solid-wire MIG | Usually DCEP with external shielding gas | V-groove rolls, light pressure, liner and tip sized for solid wire | Shorter electrode extension; set voltage and wire-feed speed for the transfer mode |
| Gas-shielded FCAW | Use the wire classification’s specified polarity and gas | Knurled or U-groove rolls, controlled pressure, flux-core liner and tip | Longer electrode extension is common; use the specified voltage, wire-feed speed and gas flow |
| Self-shielded FCAW | Use the classification’s specified polarity; no cylinder or gas flow | Knurled rolls, controlled pressure, suitable liner and tip | Follow the specified extension, voltage, wire-feed speed and travel direction |
Do not assume every flux-cored wire uses DCEN. Many gas-shielded wires and some self-shielded wires require DCEP, while other self-shielded wires require DCEN.
Reduce feed-roll pressure until the wire feeds reliably without slipping. Excess pressure can crush tubular wire, clog the liner and cause burnback. Recheck the contact-tip distance after switching; using a MIG setting on flux-cored wire changes amperage, penetration, deposition and arc stability.
A mig welder is correctly converted only after these settings produce an acceptable weld under the governing WPS.
Compare finished-part productivity, not deposition rate alone
A higher deposition rate does not guarantee more accepted parts. Compare deposited weld metal per shift after arc-on time, travel speed, penetration, slag removal, spatter cleanup, fume controls and rework.
A flux core welder can place metal faster than a MIG welding machine on heavy structural joints, then lose that advantage when slag removal or trapped slag causes repairs.
| Process | Deposition and travel | Penetration and weld quality | Cleanup and production effect |
|---|---|---|---|
| Solid-wire MIG | Usually lower deposition, but supports fast, uninterrupted travel | Stable arc and controlled penetration; poor settings can cause lack of fusion | Little or no slag; lower spatter and fume simplify inspection and robotic operation |
| Gas-shielded flux-cored | Often higher deposition on thick steel; travel speed depends on joint access and pass size | Strong penetration and high fill rates; trapped interpass slag can create inclusions | Slag chipping, spatter removal and gas protection add labor and downtime |
| Self-shielded flux-cored | High deposition without gas equipment; wind resistance supports outdoor output | Penetration depends strongly on wire, polarity and electrode extension | More fume and slag require extraction, cleaning and exposure controls; wire costs more |
Do not trade penetration for speed: excessive travel can leave an undersized bead or incomplete fusion, while excessive heat can distort the part. Measure minutes per accepted joint, including nozzle and contact-tip maintenance, fume-control downtime, consumables and repair hours.
In an automated cell, solid-wire MIG often wins when uninterrupted arc time matters; flux-cored welding wins only when its deposition advantage exceeds the cost of cleaning and defect detection.
Run a joint-specific trial before approving the production process
Approve the process only after both processes weld the same production joint and pass the same acceptance checks. Run the MIG welding machine and flux core welder with the production material, joint fit-up, fixture, position, wire size, and qualified parameters—not flat coupons.
| Measure | MIG welding machine | Flux core welder |
|---|---|---|
| Cost | Record wire, shielding gas, electricity, liner and nozzle changes, labor, cleanup, and extraction time | Add flux-cored wire cost, slag removal, fume-control time, and disposal |
| Inspection | Check profile, penetration, porosity, fusion, spatter, and required macroetch or NDT results | Use the same checks, paying close attention to trapped slag, lack of fusion, and slag inclusions |
| Automation | Measure arc-on time, cycle time, starts and stops, wire-feed stability, torch access, and rework | Measure the same values, plus slag-cleaning pauses and nozzle or contact-tip fouling |
Calculate cost per accepted part, not cost per kilogram of wire. A flux core welder can deposit metal faster yet lose the trial through slag removal, fume controls, or repairs.
Run enough parts to expose repeatability, then compare defect rates and robot stoppages. Ask for a macro cross-section when visual inspection cannot prove sidewall fusion or root penetration.
Give ATE WELDING ENGINEERING ROBOTICS AND AUTOMATION PRIVATE LIMITED the joint drawing, acceptance criteria, and trial data if an automation integrator is reviewing the cell; those details determine whether a mig welder suits the actual torch path and production cycle.
Related product

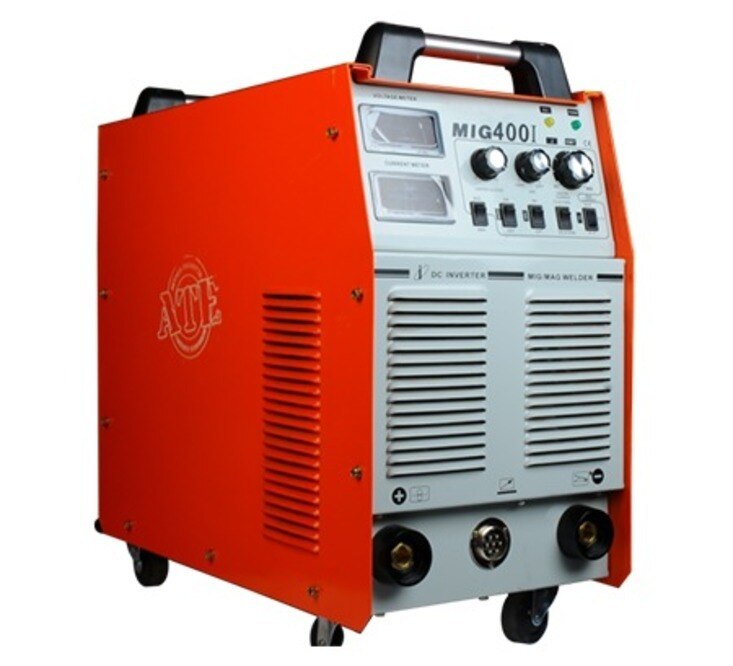

 | MIG Welding Machine High-Speed and Versatile Welding Solutions At ATE Welding Engineering & Robotic Automation, we offer advanced MIG (Metal Inert Gas) welding machines... View product → |
